모형: EWT3500A
상표: 허용되는 OEM 주문
전원: 전기 같은
신청: ATV / UTV
전압: 24V, 12V
포장: 수출 판지
수송: Ocean,Air
원산지: 중국
포트: NINGBO,CHINA
지불 유형: L/C,T/T,D/P
인 코텀: FOB,CFR,CIF

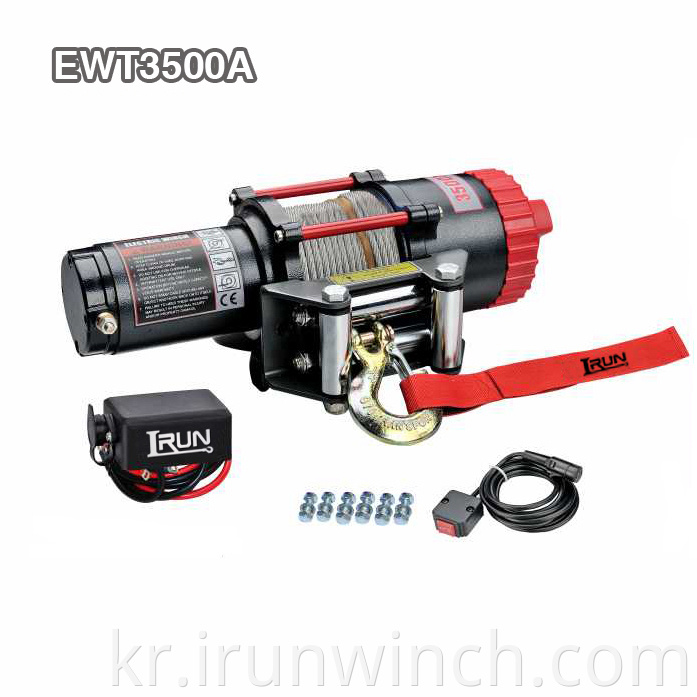

전동 UTV 윈치 3500lb 품목 No.EWT3500A
특징:
1. 무료 강철 감속기 기어
2. 특허 클러치 구조
3. 프리 스풀링 클러치
4. 자동 스크류 콘 제동 동작
5. DC 12V 또는 DC 24V 전원 드라이브 옵션
6. 높은 crrunt 작동 스위치 직접 제어
7. ATV 핸들바 스위치 제어
EWT3500
| SPECIFICATION | |
| Rated line pull | 3500 lbs (1588 kgs) |
| Motor: permanent magnet |
12V:Input: 2.0kW / 2.7hp; Output: 0.9 kW / 1.2hp
24V:Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 7/32″×44.0′ (Ø5.4mm×13.4m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3500(1588) | 8.5(2.6) | |
| 0 | 14.4(4.4) | 14.4(4.4) | 28 | 14 | 2 | 2932(1331) | 18.7(5.7) |
| 1000(454) | 9.8(3.0) | 11.1(3.4) | 80 | 50 | 3 | 2523(1145) | 29.8(9.1) |
| 2500(1134) | 7.2(2.2) | 8.8(2.7) | 150 | 70 | 4 | 2214(1005) | 44.0(13.4) |
| 3500(1588) | 5.9(1.8) | 4.9(1.5) | 170 | 100 | 5 | ||
| ITEM | EWT3500D | EWT3500A | EWT3500U |
| Overall dimensions |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.6″×4.5″×6.3″
372mm×115mm×160 mm |
| (L×W×H) | |||
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |
전체 치수: 14.3″x4.5″x4.8″
(가로x가로x높이) 368mmx115mmx123mm
순중량: 12.3kg
제품 디렉토리 : ATV와 UTV 윈치 > 나란히 윈치
