모형: EWT2500U
상표: 허용되는 OEM 주문
전원: 전기 같은
신청: ATV / UTV
전압: 24V, 12V
포장: 수출 판지
수송: Ocean,Air
원산지: 중국
포트: NINGBO,SHANGHAI
지불 유형: L/C,T/T,D/P
인 코텀: FOB,CFR,CIF

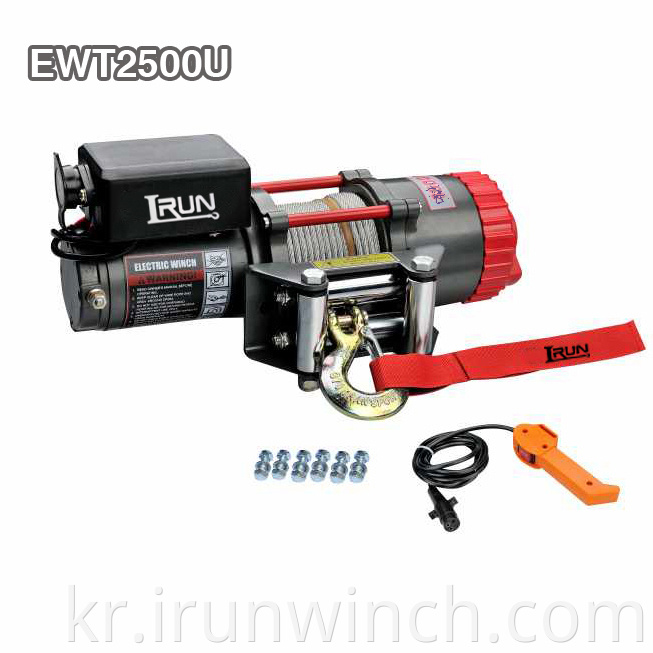

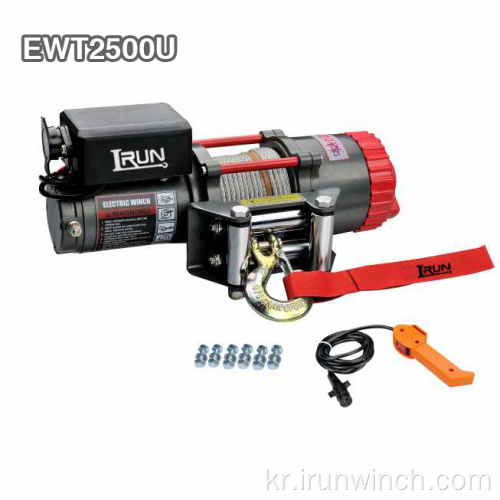

전동 ATV 윈치 2500lb 품목 No.EWT2500U
특징:
1. 전체 강철 감속기 기어
2. 특허 클러치 구조
3. 프리 스풀링 클러치
4. 자동 스크류 콘 제동 동작
5. DC 12V 또는 DC 24V 전원 드라이브 옵션
6. 높은 crrunt 작동 스위치 직접 제어
7. ATV 핸들바 스위치 제어
EWT2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.8kW / 2.4hp; Output: 0.8 kW / 1.1hp |
| 24V:Input: 1.9kW / 2.6hp; Output: 0.9 kW / 1.2hp | |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 3/16″×45.9′ (Ø4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWT2500D | EWT2500A | EWT2500U |

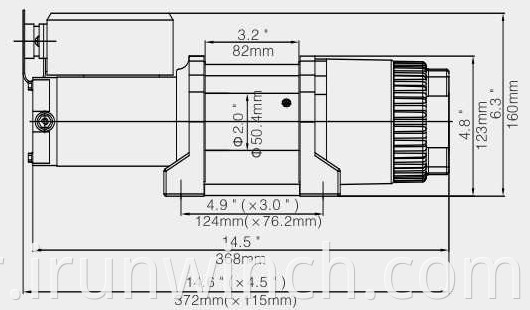

| Overall dimensions | 14.3″×4.5″×4.8″ | 14.3″×4.5″×4.8″ | 14.3″×4.5″×6.3″ |
| (L×W×H) | 368mm×115mm×123mm | 368mm×115mm×123mm | 372mm×115mm×160mm |
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |
전체 치수: 14.6″x4.5″x6.3″
(가로x가로x높이) 372mmx115mmx160mm
순중량: 12.2kg
