모형: HWP10000YD
상표: 허용되는 OEM 주문
전원: 유압
신청: 자동
포장: 수출 판지
수송: Ocean,Air
원산지: 중국
포트: NINGBO,SHANGHAI
지불 유형: L/C,T/T,D/P
인 코텀: FOB,CFR,CIF

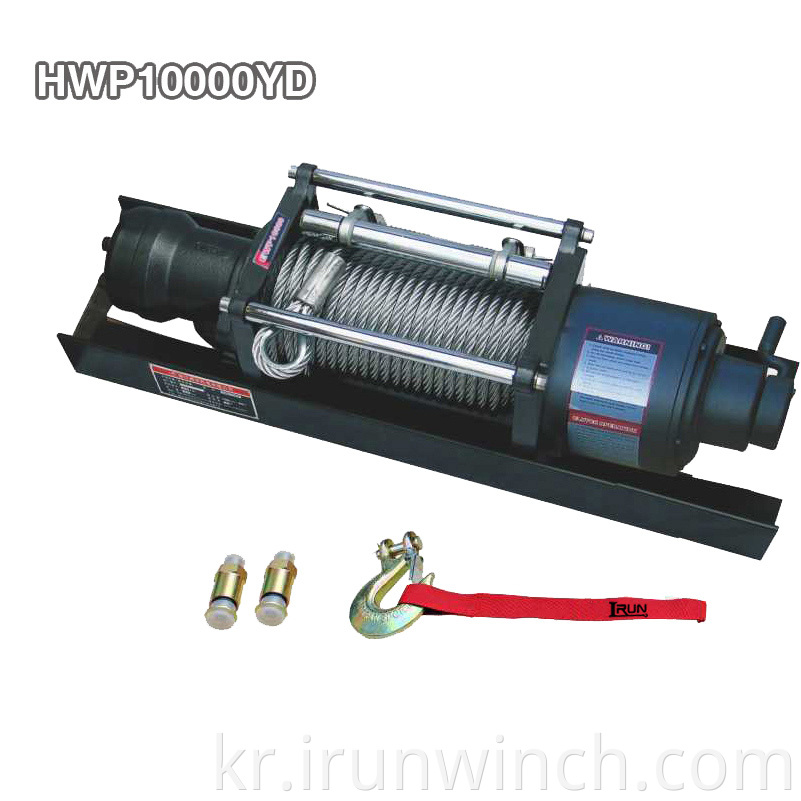

2단 유압 산업용 윈치 품목 NO. HWP10000YD 견인력 최대 10000lbs
다음과 같은 기능을 갖춘 구조차, 견인 트럭, 유틸리티 및 트레일러 애플리케이션에 이상적입니다.
1. 전체 강철 감속기 기어
2.특허 설계 2단 유성 기어 감속기
3.Two 속도 및 클러치는 하나의 손잡이와 통합
4.특허 클러치 및 변속 구조
5. 클러치 및 2단 기어 동작 자동 결합
6. 스틸 윈치 브래킷
7.자동 스크류 콘 제동 동작
8.SWR 텐셔너 공급
HWP10000YD
| SPECIFICATION | |
| Rated line pull | 10000lbs(4536kgs) |
| Motor: permanent magnet | 50ml/r |
| Oil Flow | 15~40L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | High speed: 6:1;Low speed: 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 9″ (Ø63mm×223mm) |
| Mounting bolt pattern | 22.4 “×20.5 “×4.5 ” (570mm×520mm×114.3mm) 4-M10 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) | ||
| Low speed | High speed | Low speed | High speed | ||
| 0 | 0 | 2.0(290.1) | 4.0(15) | 7.2(2.2) | 41.7(12.7) |
| 4000(1814) | 696(316) | 3.9(565.6) | 6.6(25) | 12.5(3.8) | 72.5(22.1) |
| 6000(2722) | 1043(473) | 7.5(1087.7) | 9.2(35) | 18.0(5.5) | 103.0(31.4) |
| 8000(3629) | 1391(631) | 10.5(1522.8) | 10.6(40) | 20.3(6.2) | 117.5(35.8) |
| 10000(4536) | 1739(789) | 12.5(1812.9) | |||
| Layer of cable |
Rated line pull
Per layer lbs(kgs) |
Total rope on drum
ft (m) |
White oil flow10L/min | |
| Low speed | High speed | |||
| 1 | 10000(4536) | 17.4(5.3) | 20.3(6.2) | 117.5(35.8) |
| 2 | 7969(3615) | 39.4(12.0) | 26.2(8.0) | 149.9(45.7) |
| 3 | 6624(3005) | 65.0(19.8) | 31.8(9.7) | 182.7(55.7) |
| 4 | 5667(2571) | 85.3(26.0) | 37.4(11.4) | 215.6(65.7) |
| ITEM | HWP10000YD | ||
| Overall dimensions | 23.6″×8.3″ × 7.5″ | ||
| (L×W×H) | 600mm×210 mm×191mm | ||
| Net weight (Ibs) | 99 | ||
| (kgs) | 45 |
