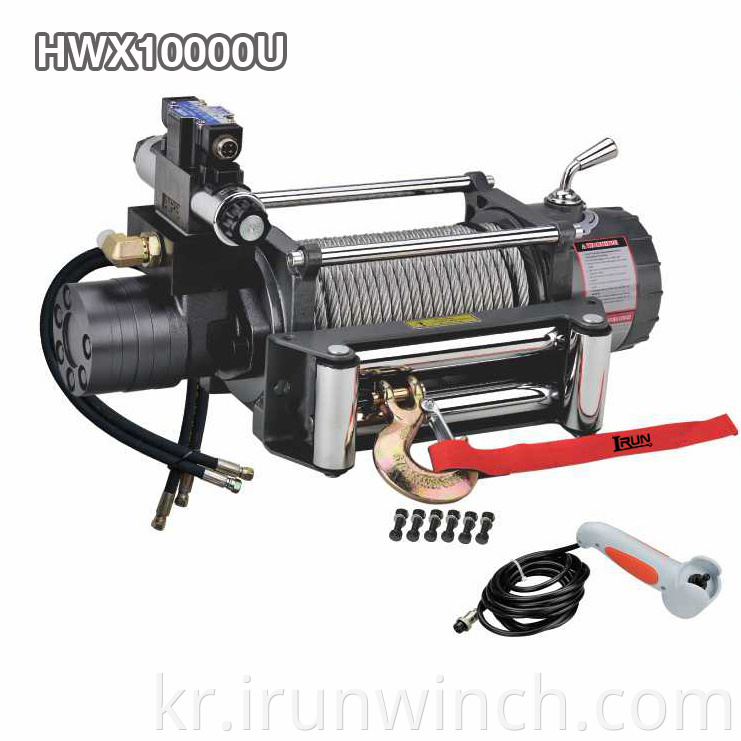

모형: HWX10000U
상표: 허용되는 OEM 주문
전원: 유압
신청: 자동
포장: 수출 판지 또는 나무 팔레트
수송: Ocean,Air
원산지: 중국
포트: NIGBO,SHANGHAI
지불 유형: L/C,T/T,D/P
인 코텀: FOB,CFR,CIF
우리의 유압 윈치는 윈치 요구 사항에 대한 지속적인 솔루션을 제공합니다. 가장 사려 깊은 상업용으로 설계되었습니다.
적용 마음, 모든 윈치는 손으로 잡아 당기는 데 완전한 신뢰성을 제공합니다.
10000 LBS 유압 윈치 품목 No.HWX10000A - 10000 lbs Hydarulic 윈치
특징:
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 10Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
2.0 (0.6) |
|
4000(1814) |
3.8(551.1) |
2.6(10) |
3.6(1.1) |
|
6000(2722) |
7.2(1044.2) |
5.3(20) |
7.5(2.3) |
|
8000(3629) |
8.6(1247.3) |
9.2(35) |
13.1(4.0) |
|
10000(4536) |
10.0(1450.3) |
11.9(45) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
10000(4536) |
17.4(5.3) |
|
|
2 |
7969(3615) |
39.4(12.0) |
|
|
3 |
6624(3005) |
65.0(19.8) |
|
|
4 |
5667(2571) |
85.3(26.0) |

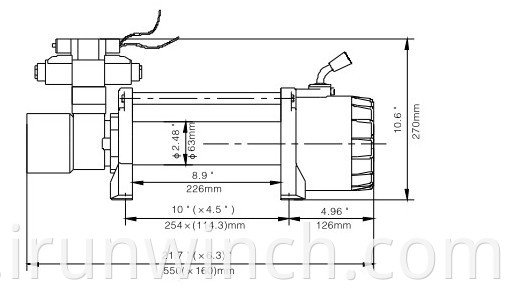

| ITEM | HWX10000A | HWX10000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm×217mm | 550mm×174mm×270mm | |
| Net weight (Ibs) | 91.0 | 91.0 | |
| (kgs) | 41.3 | 41.1 |
전체 치수 21.6″ x 6.3″ x 8.7″
(길이 x 너비 x 높이) 550mm x 160mm x 220mm
순중량 41.3 KGS
제품 디렉토리 : 유압식 4WD 윈치 > 유압 4x4 윈치
