모형: EWD12000
상표: 허용되는 OEM 주문
전원: 전기 같은
신청: ATV / UTV
전압: 24V, 12V
포장: 수출 판지
수송: Ocean,Air
원산지: 중국
포트: NINGBO,SHANGHAI
지불 유형: L/C,T/T,D/P
인 코텀: FOB,CFR,CIF
EWD 시리즈 윈치는 Max가 장착된 완벽한 2단 전동 윈치입니다. 고속에서 5,500파운드의 당기는 힘. 속도 변속과 클러치 제어를 동시에 결합하여 사용자에게 더 많은 편의를 제공할 수 있습니다.

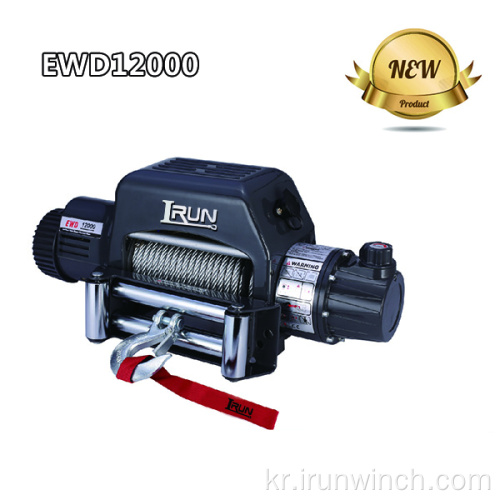

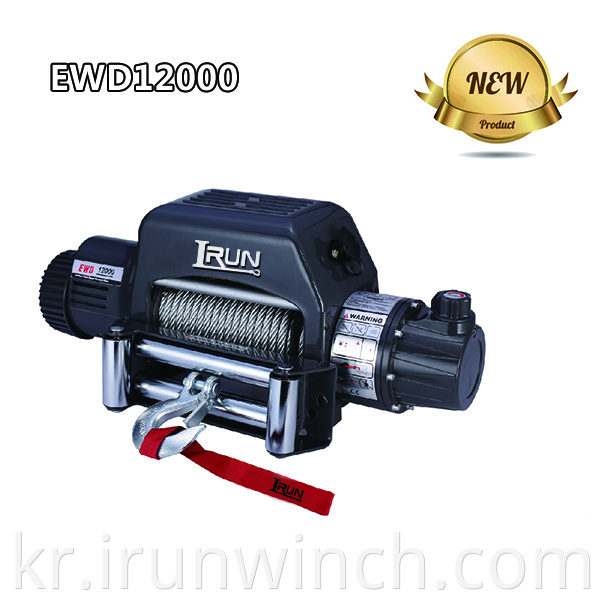

이중 속도 전기 윈치 12000lbs 품목 번호 EWD12000
특징:
EWD 12000
| Specification: | ||||
| Rated line pull | 12000 lbs (5443 kg) | |||
| Motor: Series wound | 12V:Input: 5.4kW / 7.2hp | |||
| Output: 2.4kW / 3.2hp | ||||
| 24V:Input: 4.8kW / 6.4hp | ||||
| Output: 3.1kW / 4.2hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø13/32 “×83. 7′ (Ø10.2mm×25.5m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 29.5(9.0) | 31.2(9.5) | 70 | 60 | 0 | 88.6(27.0) | 91.9(28.0) | 75 | 60 |
| 6000(2722) | 7.9(2.4) | 9.2(2.8) | 250 | 130 | 3000(1391) | 22.3(6.8) | 23.3(7.1) | 250 | 150 |
| 9000(4082) | 6.6(2.0) | 7.5(2.3) | 345 | 160 | 4000(1814) | 13.8(4.2) | 19.0(6.0) | 400 | 190 |
| 12000(5443) | 4.9(1.5) | 6.2(1.9) | 450 | 200 | 5000(2268) | 10.5(3.2) | 14.8(4.5) | 490 | 240 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 12000(5443) | 16.1(4.9) |
| 2 | 9562(4337) | 36.4(11.1) |
| 3 | 7948(3605) | 60.0(18.3) |
| 4 | 6800(3084) | 83.7(25.5) |

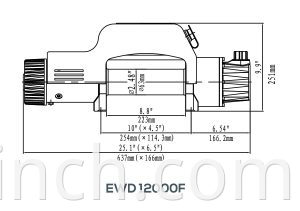

| ITEM | EWD 12000U | EWD 12000S | EWD 12000F |
| Overall dimensions | 25.1″×6.3″×10.0″ | 25.1″×6.3″×11.1″ | 25.1″×6.5″×9.9″ |
| (L×W×H) | 637mm×160mm×254mm | 637mm×160mm×283mm | 637mm×166mm×251mm |
| Net weight (Ibs/kg) | 90.4lbs / 41.0kg | 92.6lbs / 42kg | 97lbs / 44kg |
